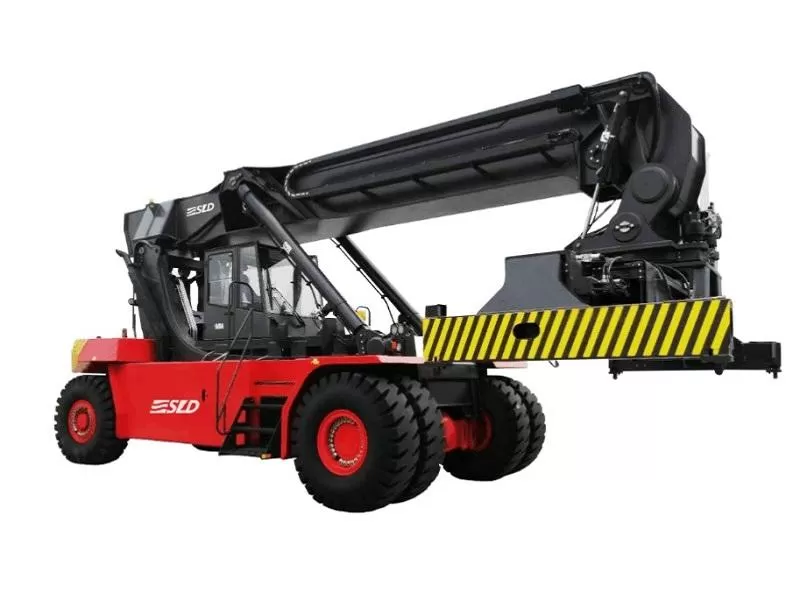

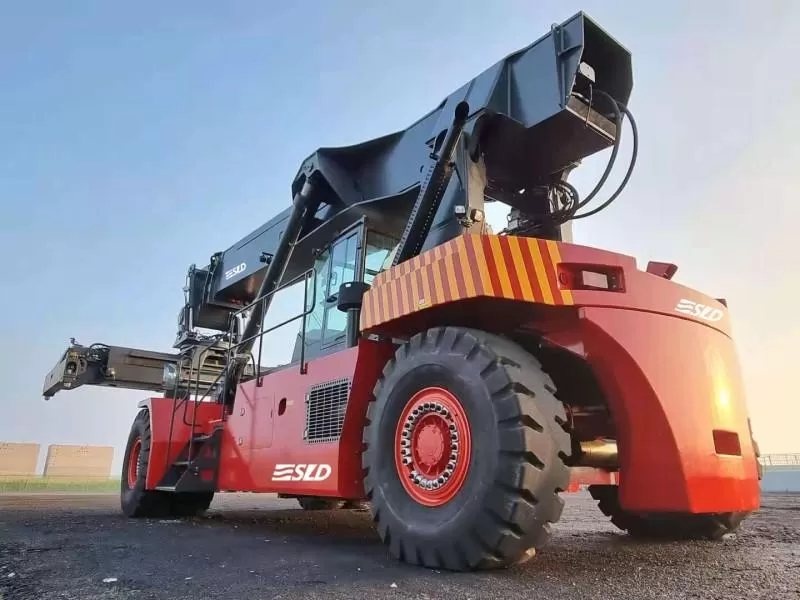

45 ton Container Reach Stacker advantages:

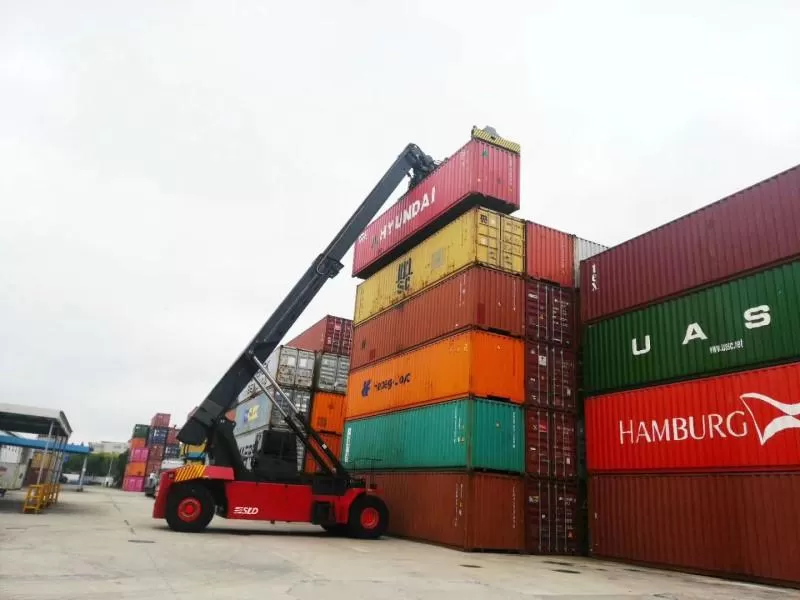

• Rated load capacity 45 tons, Max. 6 high stacking, SLDR450 can operate all laden containers in various applications such as port, storage yard, railway stations, land port.
• Equipped with advanced Linde hydraulic system, when lift 31 tons, SLDR450 lifting speed is 50% higher than other famous brands, So SLDR450 higher working efficiently.
• SLDR450 uses automatic twist locks, automatic telescopic function, make operation easy.
• Equipped with 5 shift gearbox ZF gearbox, the gear shift is more smoothly.
• Having proportional flow control valve, SLDR450 can multifunction work at same time such as lift, extension, spreader, steering etc.
• The main configurations of SLDR450 are world famous brands to ensure the truck highly reliable long service-life time.
• On demand function, the engine speed is automatically adjusted according to the handle command sent by the driver to provide the oil supply required for this operation without stepping on the accelerator, so as to greatly reduce energy consumption (save fuel consumption by more than 20%) while ensuring the maximum comfort of the driver.
|
CHARACTERISTICS |
||
|
Model |
SLDR450 |
|
|
Power unit |
Diesel |
|
|
Operation type |
Driver seated |
|
|
Load capacity (L1, L2, L3) |
Q (kg) |
45000/31000/16000 |
|
Load centre, first row (L1) |
c (mm) |
1800 |
|
Load centre, second row (L2) |
C (mm) |
3860 |
|
Load centre, third row (L3) |
C (mm) |
6400 |
|
Axle centre to spreader center (L1-1/2 high) |
x (mm) |
2800 |
|
Wheelbase |
y (mm) |
6400 |
|
DIMENSIONS |
||
|
Boom lift angle, raise/lowered |
α/β（/°） |
61/0 |
|
Height boom lowered |
h1 (mm) |
4945 |
|
Lift height (L1, L2, L3) |
h3 (mm) |
15900/14100/11350 |
|
Height, boom extended |
h4 (mm) |
19000 |
|
Height of cabin |
h6 (mm) |
3900 |
|
Height, operator's seat |
h7 (mm) |
2840 |
|
Towing coupling height |
h10 (mm) |
600 |
|
Twist lock height lowered |
h13 (mm) |
1495 |
|
Overall length with spreader |
l1 (mm) |
11618 |
|
Overall length |
l2 (mm) |
8410 |
|
Overall width |
b1/b2 (mm) |
4180/3400 |
|
Width of spreader 20'/40' |
b3 (mm) |
6050/12150 |
|
Ground clearance min. |
m1 (mm) |
345 |
|
Ground clearance, centre of wheelbase |
m2 (mm) |
350 |
|
Stacking aisle 20' containers |
Ast (mm) |
10225 |
|
Stacking aisle 40' containers Turning radius |
Ast (mm) |
13050 |
|
Min. pivoting point distance |
Wa (mm) |
8605 |
|
Min. pivoting point distance |
b13 (mm) |
3400 |
|
Wheelspan, front wheels |
b10 (mm) |
3030 |
|
Wheelspan, rear wheel |
b11 (mm) |
2786 |
|
WEIGHT |
||
|
Weight (unladen/laden) |
kg |
71400/116400 |
|
Load on drive axle (unladen/laden) |
kg |
36400/101900 |
|
Load on steering axle (unladen/laden) |
kg |
35000/14500 |
|
PERFORMANCE |
||
|
Travelling speed (unladen/laden) |
Km/h |
25/21 |
|
Gradeability (unladen/laden) |
% |
30/28.8 |
|
Tractive force (unladen) |
Kn |
408 |
|
Lifting speed (unladen/laden) |
m/s |
0.39/0.28 |
|
Lowering speed (unladen/laden) |
m/s |
0.39/0.39 |
|
CABIN |
||
|
Movable closed cabin |
||
|
Equipped with A/C, cooling/heating functions |
||
|
Noise level at driver's seat |
dBA |
74 |
|
ENGINE |
||
|
Brand |
|
CUMMINS |
|
Type |
|
QSM11 |
|
Cylinder no./displacement |
|
6/10820 cm3 |
|
Rated power @ rated speed |
|
250kw @ 2100rpm |
|
Max. torque |
|
1674Nm@ 1500rpm |
|
Rated current of alternator |
|
150A |
|
Battery |
|
24V |
|
TRANSMISSION |
||
|
Brand |
|
ZF/5WG261 AUTO |
|
Type |
|
Auto-shift/interlock |
|
Clutch type |
|
Torque converter |
|
Gear no. |
|
5F/3R |
|
TYRES |
||
|
Drive wheels |
|
18.00-25 40PR |
|
Steering wheels |
|
18.00-25 40PR |
|
Type |
|
Pneumatic |
|
Pressure |
|
10 bar |
|
Quantity, front/rear |
|
4/2 |
|
TANKS CAPACITY |
||
|
Hydraulic oil tank |
L |
800 |
|
Fuel tank |
L |
500 |
|
DRIVE AXLE |
||
|
Brand |
|
Kessler/Germany |
|
Model |
|
D102PL341 |
|
STEERING AXLE |
||
|
Brand |
|
Kessler/Germany |
|
Model |
|
L102 |
|
Steering |
|
Double action cylinder |
|
BRAKE SYSTEM |
||
|
Service brake |
|
Hydraulic wet-disc |
|
Parking brake |
|
Electric released disc brake, enabled when power off |
|
HYDRAULIC SYSTEM |
||
|
Twin piston pump |
||
|
Max. pressure: 310 bar |
||
|
Load sensing system |
||
|
Hydraulic cooler with electric motor |
||
|
Separate brake oil tank |
||
|
BOOM |
||
|
2x Dual action lift cylinders |
||
|
1x Dual action extension cylinder |
||
|
SPREADER |
||
|
Handling ISO 20'-40' containers |
||
|
2x damping cylinder |
2x gearbox & brake system |
|
|
Brand |
SP45 |
|
|
Rotate degrees |
-105°/+195° |
|
|
Sideshift |
-800/+800mm |
|
|
TRUCK SAFETIES |
||
|
Error display system |
||
|
Counter system for containers |
||
|
Weighing system (low precision) |
||
|
Electric anti-overload system |
||
|
Full can-bus control system |
||
|
Direction gearshift interlock |
||
|
Parking brake enabled when power off |
||
|
Seat switch |
||
|
SPREADER SAFETIES |
||
|
Locking/unlocking only after correct landing |
||
|
Lifting/lowering only when the 4 twistlocks on same position |
||
|
Anticollision rotation limit switch |
||
