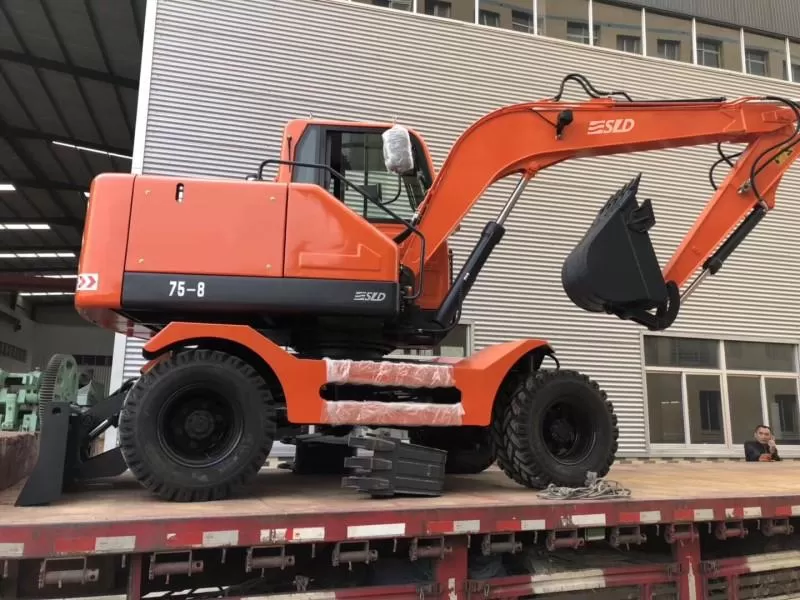

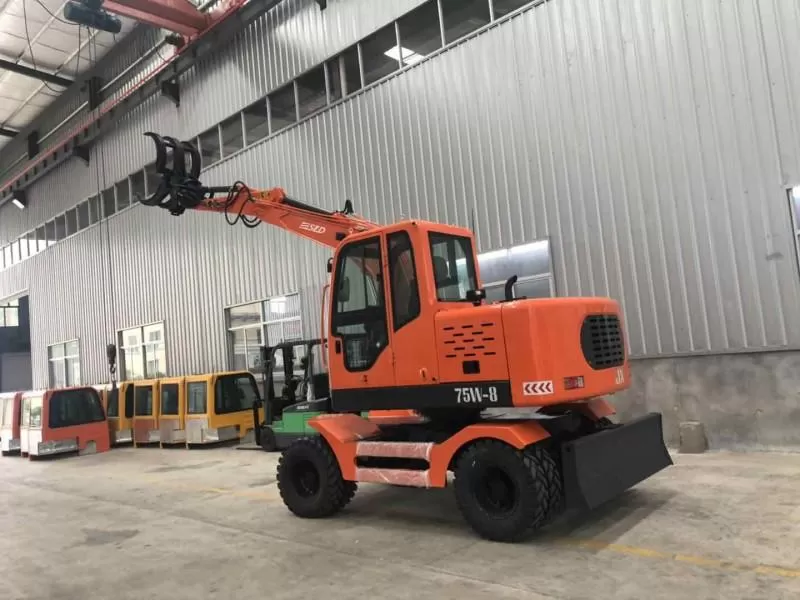

7.5 ton wheel excavator is widely used for digging and short distance transportation in construction, municipal engineering, urban and rural landscape, road traffic, dock, irrigation and water conservancy, etc.
Advanced operation system, the whole machine runs flexibly. Outstanding climbing ability, confident in digging ability.
Sepcifications:
|
Item |
Unit |
XH75W-8 |
|||
|
Boom length |
mm |
3100 |
|||
|
Arm length |
mm |
1700 |
|||
|
Overall Dimension |
Overall length (when delivery) |
mm |
5870 |
||
|
Overall width |
mm |
1960 |
|||
|
Overall height (cabin) |
mm |
2875 |
|||
|
Overall height (when drive) |
mm |
2875 |
|||
|
Dimension |
Wheeltread |
front |
mm |
1525 |
|
|
rear |
mm |
1525 |
|||
|
Wheelbase |
mm |
2350 |
|||
|
Min. ground clearance (plateform) |
mm |
1050 |
|||
|
Rear tail wing radius |
mm |
1800 |
|||
|
Chassis width |
mm |
1950 |
|||
|
Min. ground clearance( chassis, bottom of transmission) |
mm |
345 |
|||
|
Width ( up-part) |
mm |
1900 |
|||
|
Working Range |
Max. digging height |
mm |
6660 |
||
|
Max. dumping height |
mm |
4760 |
|||
|
Max. digging depth |
mm |
2790 |
|||
|
Max. digging depth (vertical) |
mm |
2460 |
|||
|
Max. digging radius |
mm |
6090 |
|||
|
Max. digging distance |
mm |
5900 |
|||
|
Min.turning radius |
mm |
2320 |
|||
|
Max. height(when Min.turning radius ) |
mm |
4780 |
|||
|
Max.ground clearance (when Bolldoze blade up) |
mm |
300 |
|||
|
Max.depth (when Bolldoze blade down) |
mm |
100 |
|||
|
Performance |
Operating weight |
kg |
6500 |
||
|
Bucket capacity |
m³ |
0.2~0.3 |
|||
|
Drive speed |
Forward II |
km/h |
4.5 |
||
|
Forward II |
km/h |
9 |
|||
|
Forward III |
km/h |
16 |
|||
|
Forward IV |
km/h |
26 |
|||
|
Forward V |
km/h |
33 |
|||
|
Reward gear |
km/h |
4.5 |
|||
|
Clambing capacity |
° |
30 |
|||
|
Turning speed |
rpm |
10 |
|||
|
Engine |
Manufacturer |
|
Xinchai |
||
|
Model |
|
4D32YG30 |
|||
|
Displacement |
L |
3.168 |
|||
|
Rated power / rated speed |
kW/rpm |
50/2300 |
|||
|
Max.torque |
N.m/rpm |
263/1600 |
|||
|
Pump |
Type |
|
Gear pump |
||
|
Flow |
L/min |
2X57 |
|||
|
Main relief valve pressure |
MPa |
21 |
|||
|
Oil type |
Fuel oil tank capacity |
L |
100 |
||
|
Hydraulic oil tank capacity |
L |
118 |
|||
|
Driving part |
Tires number |
|
8 |
||
|
Size |
|
7.50-16/16PR |
|||
|
Front axle wing angle |
° |
8 |
|||
|
Attachment |
|
Bucket |
|||
