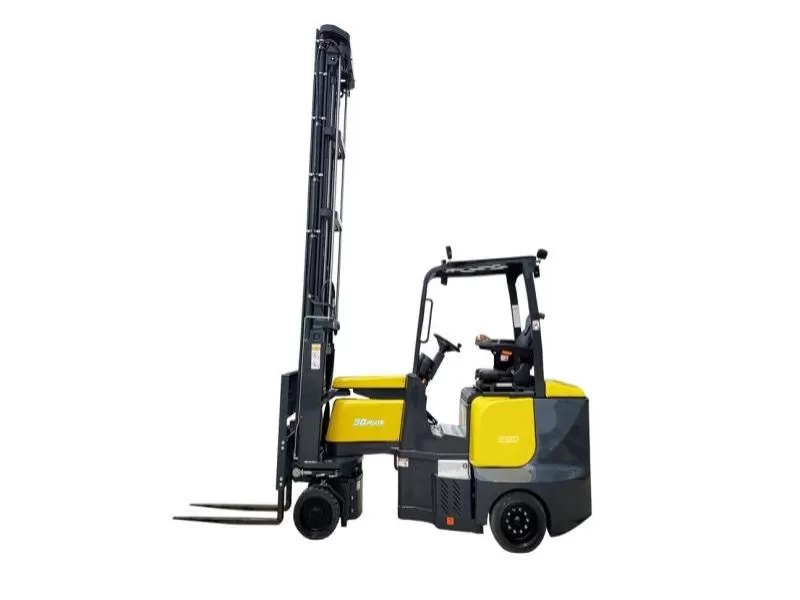

Li-ion battery powered narrow aisle forklifts has the fingertip armrest, 80V full AC control system, wireless camera, guiding lasers, cooling fans, smart charger station, 80V 405ah Li-ion battery which is 5 years warrantied, OPS system, proportional valve, 5 LED lights and 1 back-up warning light, triplex full free mast, integral side shift, black solid tyres, suspension seat etc. All configurations are top-level.
Configurations
|
Standard parts |
Optional parts |
|
Fingertip armrest |
Wireless camera and monitor |
|
Electro-hydraulic proportional valve |
Lithium ion battery |
|
80V AC ZAPI controller |
Double deep forks |
|
80V AC lifting&;driving motor |
Weighing forks |
|
80V 400AH lead acid battery and customized charger station |
Height pre-selector |
|
LED &; warning light |
Cabin |
|
Cooling fans |
White tyres |
|
Triplex full free mast |
Quad mast |
|
Integral side shift |
Fork positioner |
|
Load backrest |
|
|
Black solid tyres |
|
|
Backup mirror |
|
|
Suspension seat with safety belt and OPS system |
|
|
Guiding lasers |
|
Specifications
|
Model |
Unit |
NA30 |
|
Capacity |
KG |
3000 |
|
Mast lift height |
MM |
4300-12400 |
|
Mast free lift height |
MM |
1365-4686 |
|
Mast closed height |
MM |
2265-5665 |
|
Mast full extended height |
MM |
5561-13739 |
|
Overall length(excluding forks) |
MM |
2780 |
|
Ground clearance |
MM |
50 |
|
Overhead guard height |
MM |
2270 |
|
Chassis width rear |
MM |
1600 |
|
Chassis width front |
MM |
980 |
|
Load center |
MM |
600 |
|
Wheelbase |
MM |
1735 |
|
Seat height |
MM |
1220 |
|
Mast tilt angle(back/fwd) |
DEGREE |
3/1 |
|
Front chassis rotate angle(left/right) |
DEGREE |
220 |
|
Ground speed |
KM/H |
16 |
|
Lift speed(load/unload) |
M/S |
0.44/0.5 |
|
Front tyre size |
MM |
412x174 |
|
Rear tyre size |
MM |
457x170 |
|
Grade ability(load/unload) |
% |
18/20 |
|
Battery voltage/capacity |
V/AH |
80/500 |
|
Weight including battery |
KG |
5150 |
|
Weight excluding battery |
KG |
7900 |
|
Traction motor |
KW |
19.5 |
|
Lifting motor |
KW |
15 |
|
Min net working aisle width |
MM |
2100 |
|
Transfer aisle width |
MM |
2700 |
