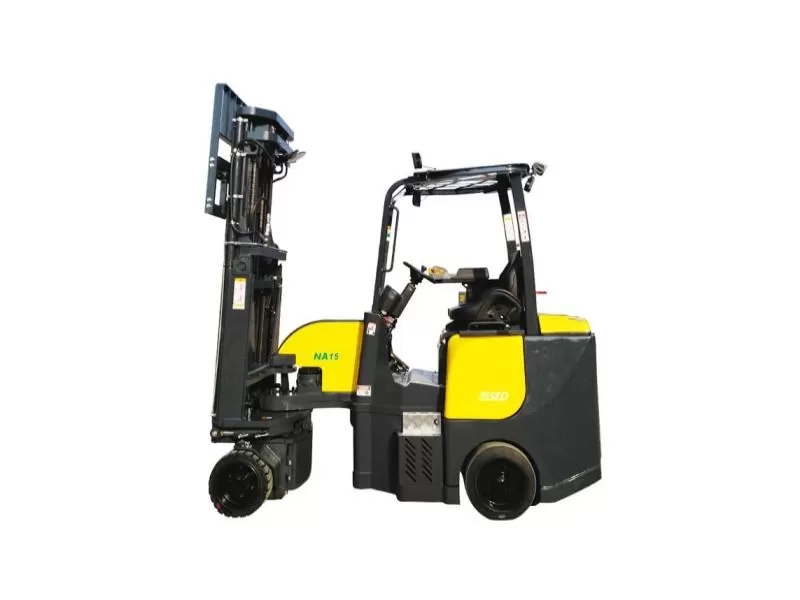

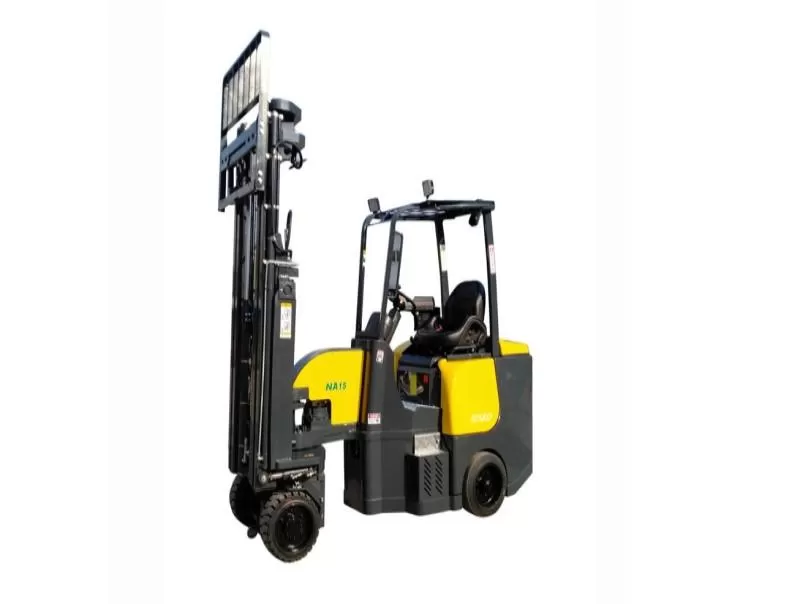

NA series articulated forklift is a versatile narrow aisle forklift that can help you deal with pallets in the smallest spaces. No matter if you are working in a small warehouse or you need to take out a lot of goods from a corner or gap in your space. You can manipulate these narrow aisle forklifts skillfully and easily get what you need without worrying about damaging your warehouse walls, shelves or inventory itself.
Configurations
|
Standard parts |
Optional parts |
|
Fingertip armrest |
Wireless camera and monitor |
|
Electro-hydraulic proportional valve |
Lithium ion battery |
|
80V AC ZAPI controller |
Double deep forks |
|
80V AC lifting&;driving motor |
Weighing forks |
|
80V 400AH lead acid battery and customized charger station |
Height pre-selector |
|
LED &; warning light |
Cabin |
|
Cooling fans |
White tyres |
|
Triplex full free mast |
Quad mast |
|
Integral side shift |
Fork positioner |
|
Load backrest |
|
|
Black solid tyres |
|
|
Backup mirror |
|
|
Suspension seat with safety belt and OPS system |
|
|
Guiding lasers |
Specifications
|
Model |
Unit |
NA15 |
|
Capacity |
KG |
1500 |
|
Mast lift height |
MM |
4300-7050 |
|
Mast free lift height |
MM |
1365-2435 |
|
Mast closed height |
MM |
2265-3335 |
|
Mast full extended height |
MM |
5561-8311 |
|
Overall length(excluding forks) |
MM |
2780 |
|
Ground clearance |
MM |
50 |
|
Overhead guard height |
MM |
2270 |
|
Chassis width rear |
MM |
1030 |
|
Chassis width front |
MM |
980 |
|
Load center |
MM |
600 |
|
Wheelbase |
MM |
1735 |
|
Seat height |
MM |
1220 |
|
Mast tilt angle(back/fwd) |
DEGREE |
3/1 |
|
Front chassis rotate angle(left/right) |
DEGREE |
220 |
|
Ground speed |
KM/H |
16 |
|
Lift speed(load/unload) |
M/S |
0.44/0.5 |
|
Front tyre size |
MM |
412x174 |
|
Rear tyre size |
MM |
457x150 |
|
Grade ability(load/unload) |
% |
18/20 |
|
Battery voltage/capacity |
V/AH |
80/400 |
|
Weight including battery |
KG |
5150 |
|
Weight excluding battery |
KG |
6400 |
|
Traction motor |
KW |
19.5 |
|
Lifting motor |
KW |
15 |
|
Min net working aisle width |
MM |
1800 |
|
Transfer aisle width |
MM |
2700 |
