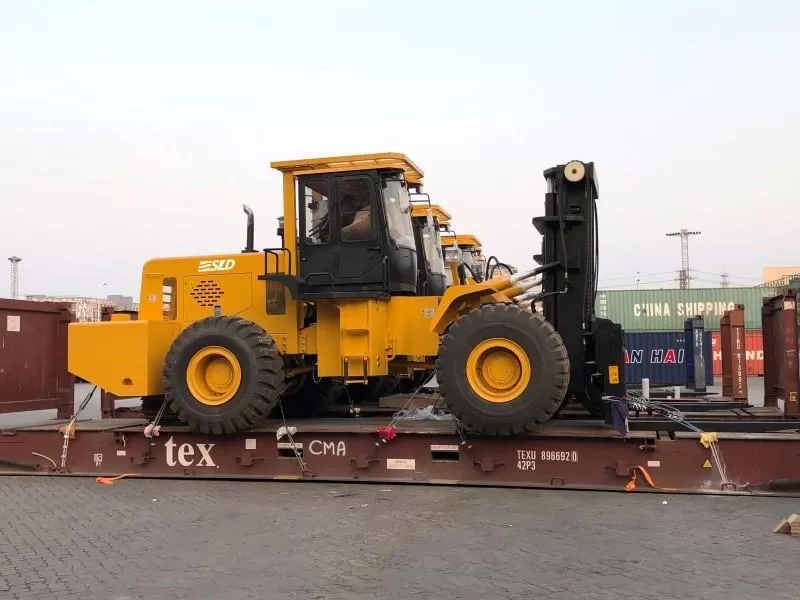

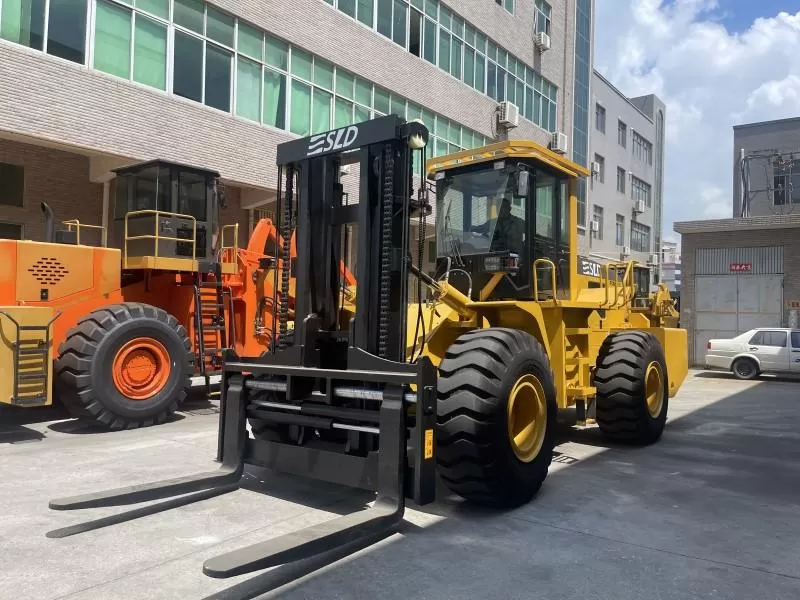

Main Features of 20 ton Rough terrain Forklift
1, Engine: Weichai WD10G220E11engine, 162KW, strong power, energy conservation and environmental protection.2, Transmission& torque converter: brand Sanchi hydraulic Transmission ZL50, 2F/1R. It is special for heavy-duty forklift, imported technology, reliable performance, convenient maintenance, smooth transmission and convenient operation.
3, Driven axle: Self-made reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
4, Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
5, Braking system: caliper disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
6, Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.
7, Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
8, Tyre: Resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable.
9, Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
10, Cabin: With cooling air-conditioning ,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
|
Specifications |
||||||
|
|
Manufacturer |
|
SLD |
|||
|
Model |
|
FDM8200 |
||||
|
Power type |
|
Diesel |
||||
|
Rated loading capacity |
Kg |
20000 |
||||
|
Load center |
mm |
800 |
||||
|
|
Lifting height |
mm |
3000 |
|||
|
Free lift height |
mm |
195 |
||||
|
Fork size |
mm |
1600×200×100 |
||||
|
Fork distance |
Min./Max. |
mm |
400/1480 |
|||
|
Mast tilt angle |
Front/Rear |
deg |
8/12 |
|||
|
Front overhang |
mm |
950 |
||||
|
|
Overall length |
mm |
8550 |
|||
|
Overall width |
mm |
3160 |
||||
|
Mast lowered height |
mm |
3450 |
||||
|
Mast extended height |
mm |
4380 |
||||
|
Overhead guard height |
mm |
3200 |
||||
|
Turning radius |
mm |
5500 |
||||
|
Min.right angle aisle width |
mm |
3500 |
||||
|
|
|
Traveling Speed |
km/h |
25/24 |
||
|
Lifting spead |
mm/sec |
320/270 |
||||
|
Max.gradeability |
% |
25 |
||||
|
Max. Pull force(full load) |
KN |
95 |
||||
|
Self weight |
kg |
25000 |
||||
|
|
Wheel size |
Front |
|
26.5-25 |
||
|
Rear |
|
26.5-25 |
||||
|
Tread |
Front |
mm |
1500 |
|||
|
Rear |
mm |
1550 |
||||
|
Wheelbase |
mm |
3900 |
||||
|
Min.Ground clearance (No load/Full load) |
Mast |
mm |
230/220 |
|||
|
Frame |
mm |
245/240 |
||||
|
|
Battery |
V/AH |
24/100×2 |
|||
|
|
Model |
|
WD10G220E11 |
|||
|
Manufacturer |
|
WEICHAI |
||||
|
Rated power |
Kw/rpm |
162/2300 |
||||
|
Rated torque |
N.m/rpm |
1460/2400 |
||||
|
NO.of cylinder |
|
6 |
||||
|
Bore×Stroke |
mm |
126×130 |
||||
|
Displacement |
L |
9.726 |
||||
|
Fule tank capacity |
L |
200 |
||||
|
|
Type |
L |
Hydraulic |
|||
|
Forwarder / Rear |
|
2/1 |
||||
