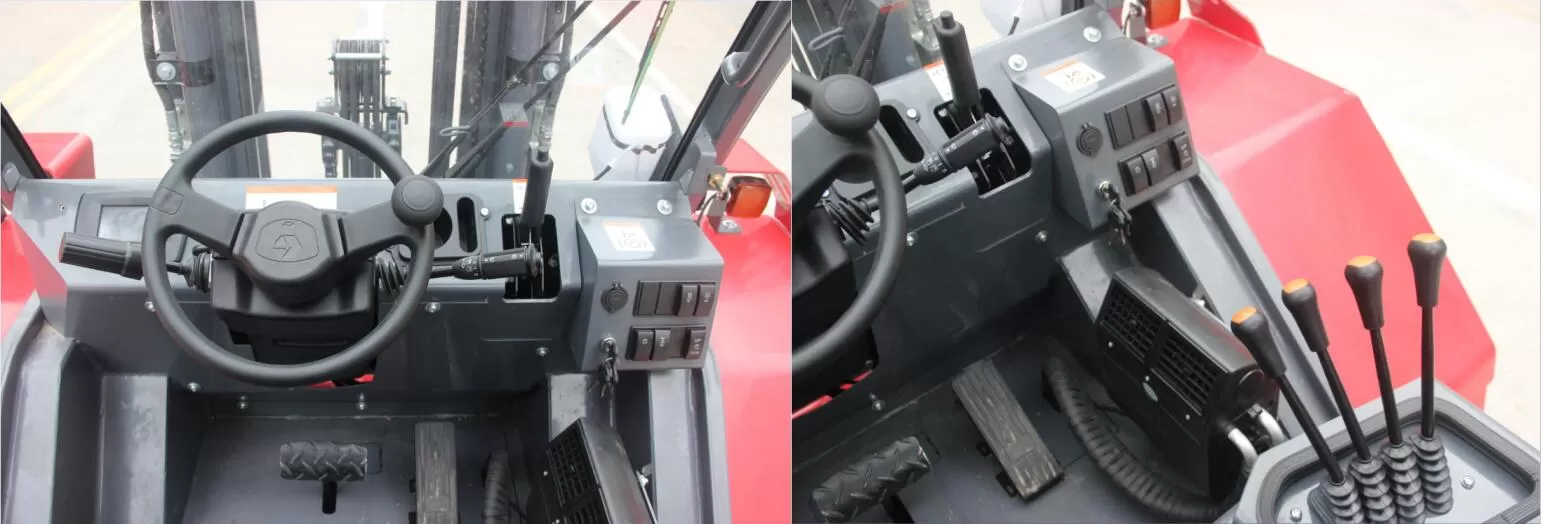

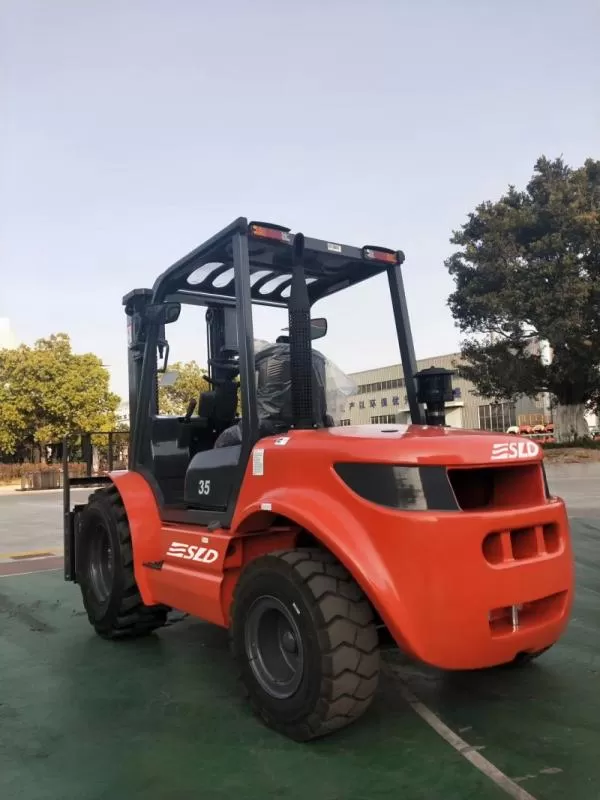

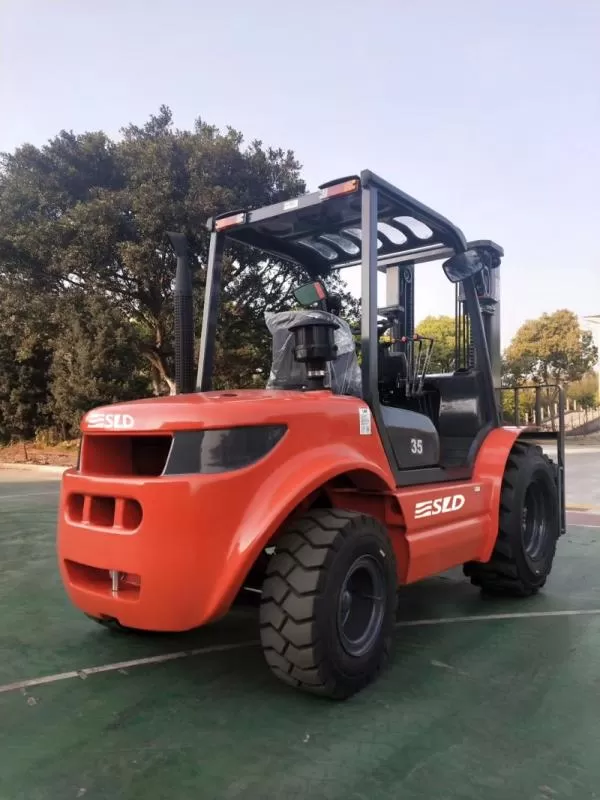

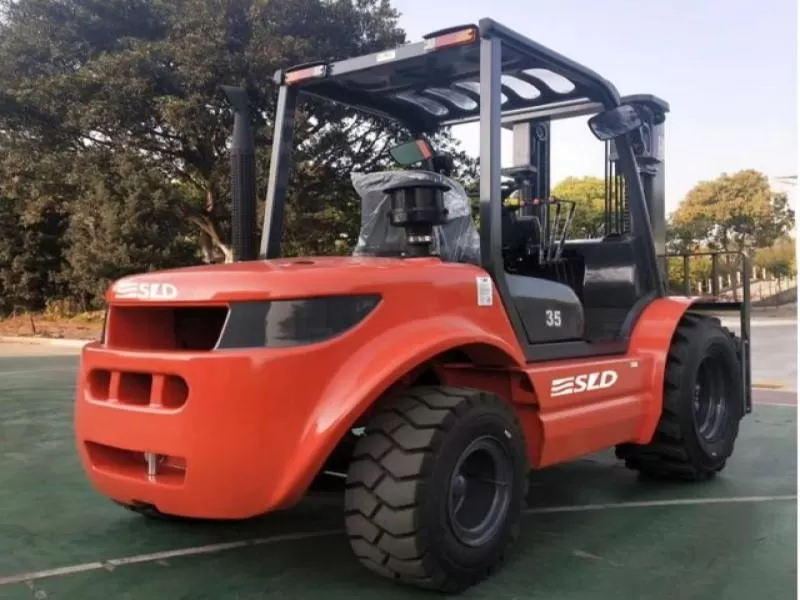

3.5 ton 2WD 4WD rough terrain forklift adopts optional cabin with heater. It has adapted the latest ergonomics for operator convenience. Travel & hydraulic controls are positioned forward for most ergonomic natural operation. Fully adjustable steering wheel and fully suspension seat with seat belt accommodates all size operators.
Main Features of 3.5 ton Rough terrain Forklift
Engine & transmission system:
High performance imported engine like YANMAR and PERKINS with EUIIIB/EUIV/EPA standards, which is high efficiency, lower energy consumption and low emission levels.TCM technology transmission with floating system highly reduces the forklift vibration and noise, the 100% differential lock system ensure the stable trafficability performance in mud condition.
Steering and brake system:
Oscillating steer axle allows either wheel to
step over obstacles keeping the machine and load level. Flotation drive &
steer tires provide excellent traction and stability. The steering angle is
from 43.6°to 70°with very small turning radius.
TCM technology brake system which is sensitive
and light full hydraulic with a better performance braking.
Hydraulic system:
Japanese Shimadzu multi valves and gear pump,
and the Japanese NOK sealing elements. The high quality hydraulic components
and rational distribution of the pipes helps to control the oil pressure and
highly improved the forklift performance.
Electrical system:
LCD display provides extensive information on
truck operation and maintenance state, it with waterproof and shock proof
protection. The advanced wiring harness, waterproof connectors and multiunit
fuse module ensure the security and reliability of the circuit.
LED lights reduces the energy consumption and
maintenance costs.
