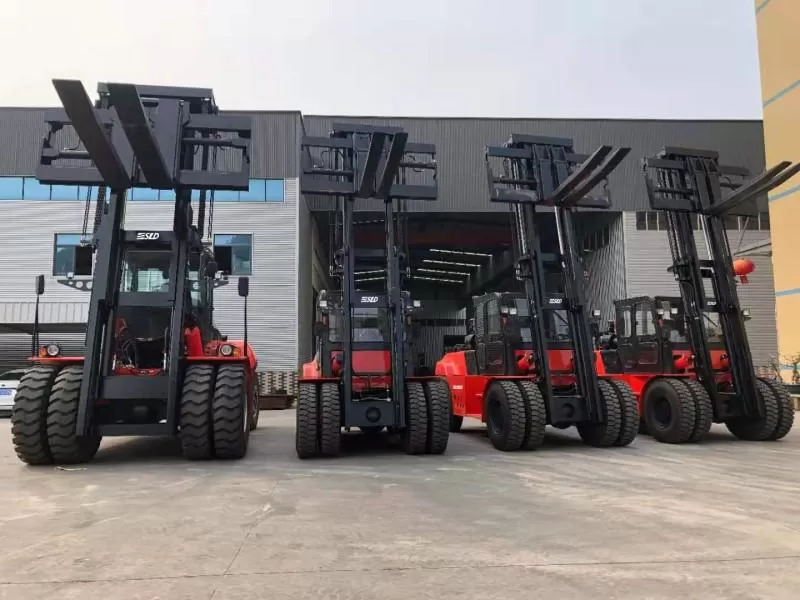

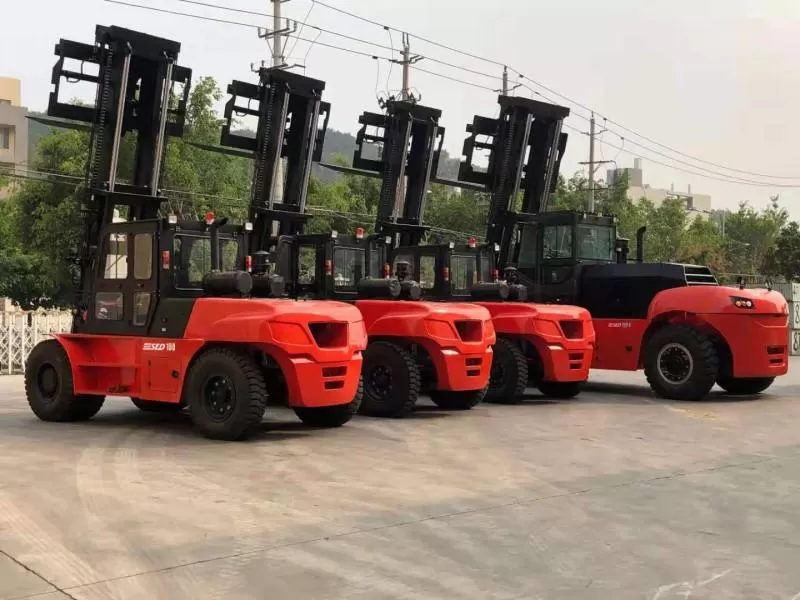

Main features of 15 ton fork lift truck FD150 heavy lift forklift:
1, Frame structure: The frame get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure.
2, Fork: with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
3, Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.
4, Overhead guard or Cab:Strong roof guard or full cabin with air-conditioning , wide view and comfortable seats, flexible control.
5, Engine: Adopt Cummins or Yuchai turbocharging engine, powerful, shigh efficiency operation.
6, Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable. Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
7, Cooling system: adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
| Parameters: | Vehicle configuration | FD150 | ||
| Performance | Rated load | 15000 | ||
| Load center | 600 | |||
| Mast tilt angle (front/rear) | º | 6/12 | ||
| Overall dimensions | Length | mm | 7200 | |
| Width | mm | 2550 | ||
| Height | mm | 3460 | ||
| Mast lifting height | mm | 3000 | ||
| Fork size (L*W*H) | mm | 1800X200X90 | ||
| Min. turning radius | mm | 5050 | ||
| Max. travel speed (with load) | Km/h | 22 | ||
| Lifting speed (with load) | mm/s | 240 | ||
| Gradeability (with load) | % | 20 | ||
| Weight | Kg | 18000 | ||
| Tyre | Front | 4X12.00-24/20PR | ||
| Rear | 2X12.00-20/18PR | |||
| Wheel tread | Front | mm | 1850 | |
| Rear | mm | 2130 | ||
| Wheelbase | mm | 3600 | ||
| Min. ground clearance | mm | 270 | ||
| Engine | Model | YC6J175-T302 | ||
| Rated power | KW | 129 | ||
| Max. torque | N.m | 710 | ||
Note: the above data are subject to change without prior notice.
