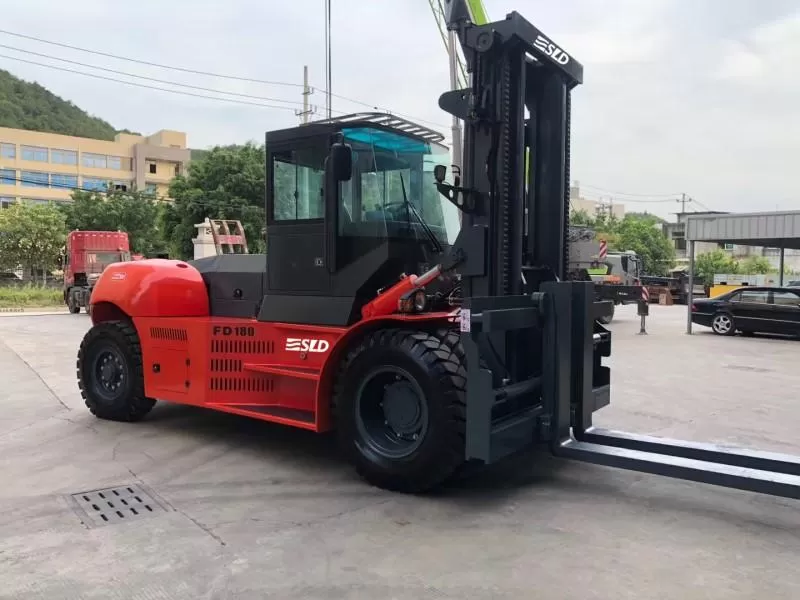

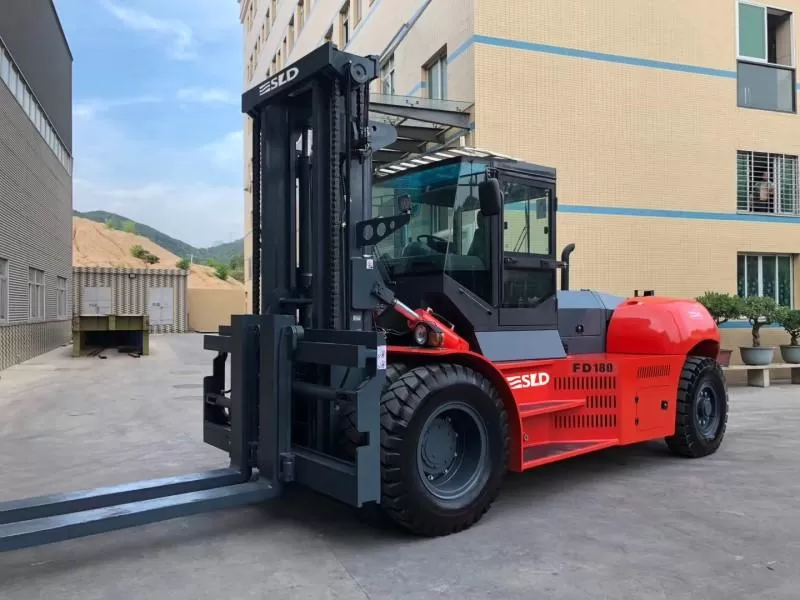

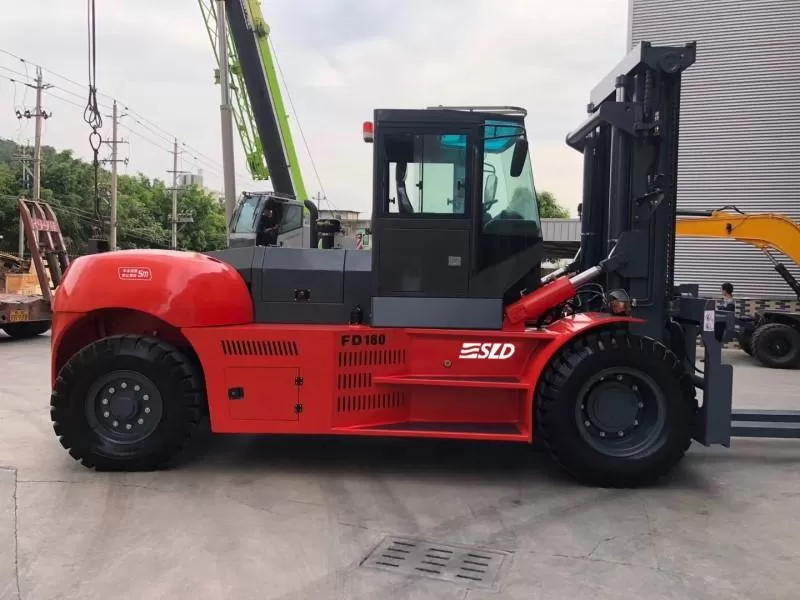

Main features of 18 ton 20 ton counterbalance forklift:
1, Engine: Cummins or Yuchai or Weichai engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
2, Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
3, Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
4, Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
5, Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
6, Pipeline: high pressure oil line use the famous brand, impact resistance, wear resistance and long service life
7, Fork: use Cascade Fork,with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
8, Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
|
Model
|
|
|
FD180
|
|
Features
|
Rated Load
|
Kg
|
18000
|
|
Load Center
|
mm
|
900
|
|
|
Wheelbase
|
mm
|
3600
|
|
|
Weight
|
Weight
|
Kg
|
25000
|
|
Chassis
|
Tire Specs:Front
|
|
12.00-24
|
|
Tire Specs:Rear
|
|
12.00-20
|
|
|
Tires Qty,front/rear(X-dreve wheels)
|
|
4/2
|
|
|
Wheel tread:Front
|
mm
|
2070
|
|
|
Wheel tread:Rear
|
mm
|
2130
|
|
|
Dimensions
|
Mast/carriage tilt angle(front/rear)
|
Degree(°)
|
6/12
|
|
Mast height(fork lowering)
|
mm
|
3460
|
|
|
Mast lifting height
|
mm
|
3500
|
|
|
Max.height
|
mm
|
5220
|
|
|
height to head guard(height to cab)
|
mm
|
3220
|
|
|
Overall height(with forks)
|
mm
|
7200
|
|
|
Fork front verticaal sueface to the rear end of the vehicle
|
mm
|
5400
|
|
|
Overall width
|
mm
|
2750
|
|
|
Fork dimension
|
mm
|
1800*200*90
|
|
|
Fork carriage width
|
mm
|
2500
|
|
|
Mast min ground(with load)
|
mm
|
270
|
|
|
Wheelbase center min ground(with load)
|
mm
|
310
|
|
|
Min.turning Radius
|
mm
|
5050
|
|
|
Travel speed(with load/without load)
|
km/h
|
22/30
|
|
|
Performance
|
Max.lifting speed(with load/without load)
|
mm/s
|
240/300
|
|
traction
|
KN
|
120
|
|
|
gradeability(with load/without load)
|
%
|
20/22
|
|
|
Driving brake
|
|
Hydraulic clamp disc
|
|
|
Engine
|
Engine
|
brand
|
Yuchai Engine
|
|
model
|
YC6J175-T302
|
||
|
Rated Output
|
129(Kw)
|
||
|
Cylinder No
|
6
|
||
|
Others
|
Transmission gears(Front/rear)
|
|
2/1
|
Note: the above data are subject to change without prior notice.
