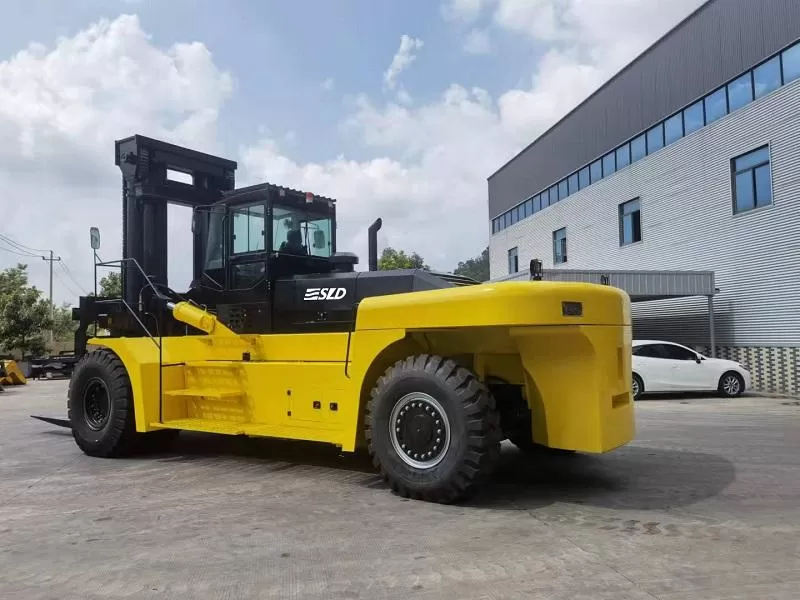

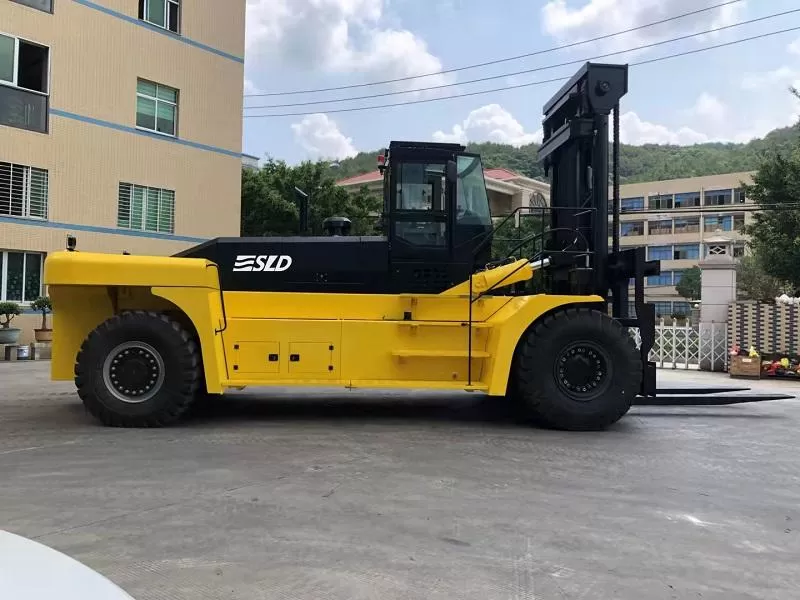

FD420 rated load 42000 kgs heavy duty forklift 42 tons diesel forklift
Main features of 42 ton forklift :
1. Adopt Weichai WP12G375E350 turbocharging engine, powerful, satisfies high efficiency operation.
2. Use ZF power shift transmission, big traction in combined operating condition.
3. Adopt double turbine hydraulic torque converter, stepless speed change, single level control for the speed changing.
4. Variable speed control valve matched with neutral starter, the machine start more secure.
5. Front axle adopt Kessler wet type driving axle, Good overload performance.
6. Steering axle adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
7. Cab With air-conditioning, wide view and comfortable seats, flexible control.
|
Item |
Specification |
Unit |
SLD |
||
|
General |
1 |
Model |
|
FD420 |
|
|
|
3 |
Power Type |
|
Diesel |
|
|
|
4 |
Rated Capacity |
Kg |
42000 |
|
|
|
5 |
Load Center |
mm |
1250 |
|
|
Dimensions |
6 |
Mast Lift Height |
mm |
4000 |
|
|
|
7 |
Fork Size(LxWxT) |
mm |
2600x300x130 |
|
|
|
8 |
Fork Spread(outside)(Min./Max) |
mm |
910/2830 |
|
|
|
9 |
Mast Tilt Angle(F/R) |
deg |
6·/12· |
|
|
|
10 |
Fork Overhang |
mm |
1180 |
|
|
|
11 |
Overall Length without forks |
mm |
8170 |
|
|
|
12 |
Overall Width |
mm |
3600 |
|
|
|
13 |
Mast Lowered Height |
mm |
5040 |
|
|
|
14 |
Cabin Height |
mm |
3820 |
|
|
|
15 |
Min.Turning Radius |
|
mm |
7730 |
|
Performance |
16 |
Speed(Unload/Load) |
Travel |
km/h |
30/26 |
|
|
17 |
|
Lifting |
mm/s |
300 |
|
|
18 |
Max.gradeability(Load) |
% |
20 |
|
|
|
19 |
Max.traction(Load) |
KN |
240 |
|
|
|
20 |
Service Weight |
kg |
53000 |
|
|
Tires |
21 |
